Office Network and ACL Security Implementation

Project Overview

Organizations rely on segmented networks to prevent lateral movement during cyber attacks. This lab simulates a real corporate office where departments must communicate while maintaining security boundaries.

• 3 Departments: Admin, Sales, HR
• Router-based inter-VLAN routing
• Access Control Lists for traffic restriction
• Connectivity and security validation

Network Architecture

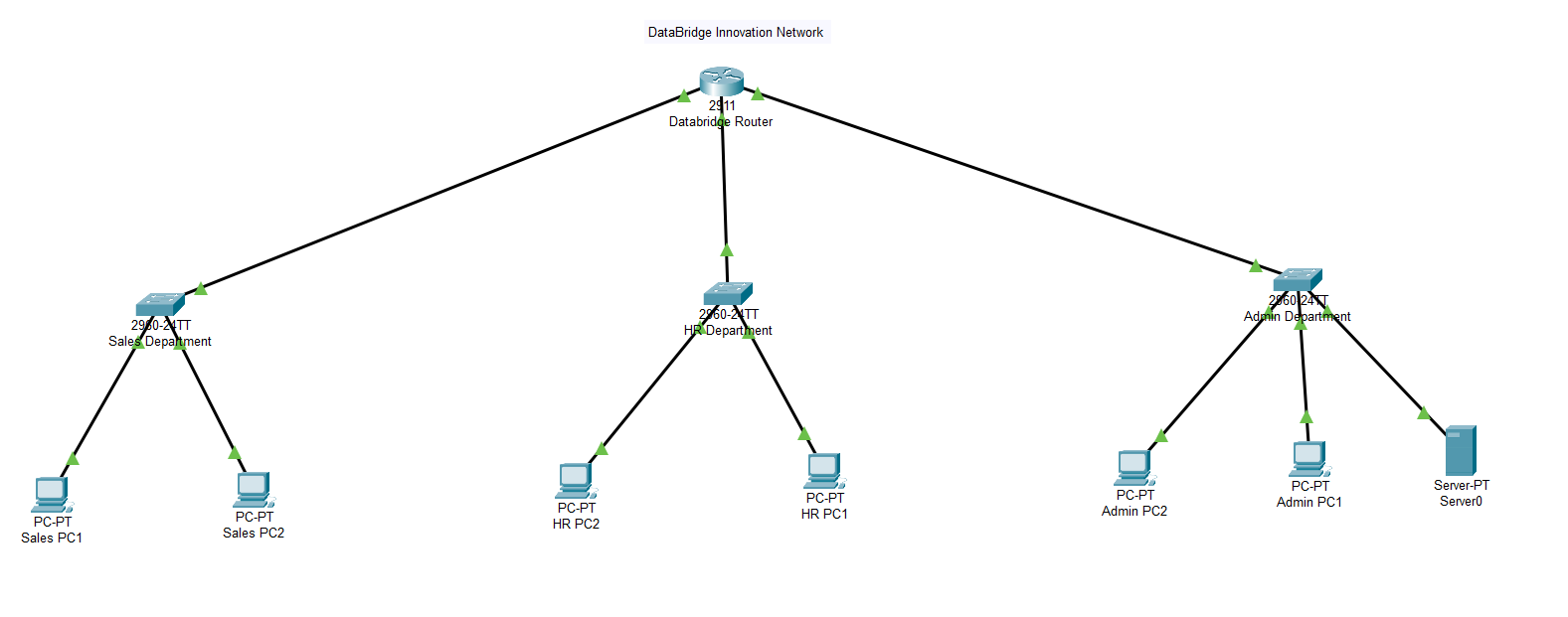

Subnet Design

Each department was isolated into its own subnet to reduce broadcast domains and improve security posture.

Router Configuration

interface GigabitEthernet0/0
ip address 192.168.10.1 255.255.255.0
no shutdown

interface GigabitEthernet0/1
ip address 192.168.20.1 255.255.255.0
no shutdown

interface GigabitEthernet0/2
ip address 192.168.30.1 255.255.255.0
no shutdown

This enabled routing between isolated departmental networks.

Security Implementation (ACL)

Security requirement: HR department must NOT access Admin resources while all other communication remains allowed.

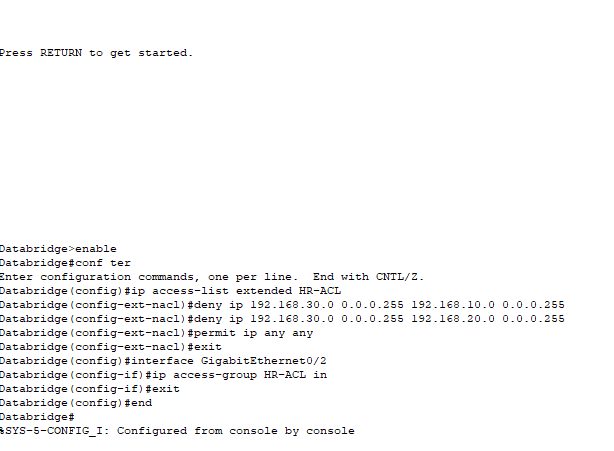

access-list 101 deny ip 192.168.30.0 0.0.0.255 192.168.10.0 0.0.0.255
access-list 101 permit ip any any

The ACL enforces least privilege access — a core Zero Trust principle.

Testing & Validation

Before Security

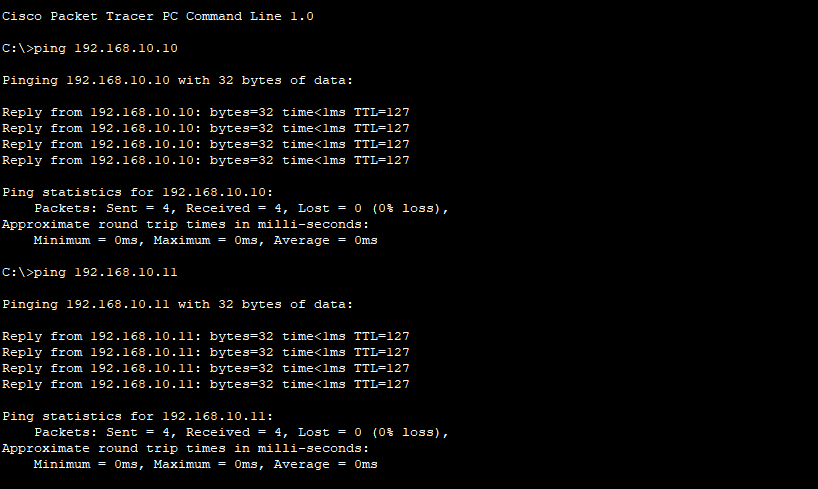

• Sales ↔ Admin: Allowed

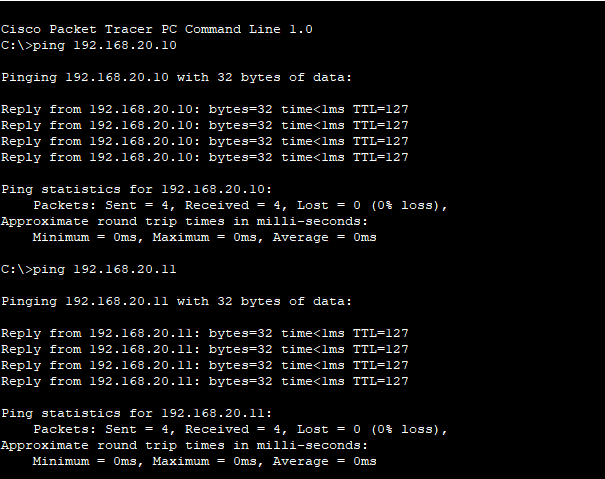

• Admin ↔ Sales: Allowed

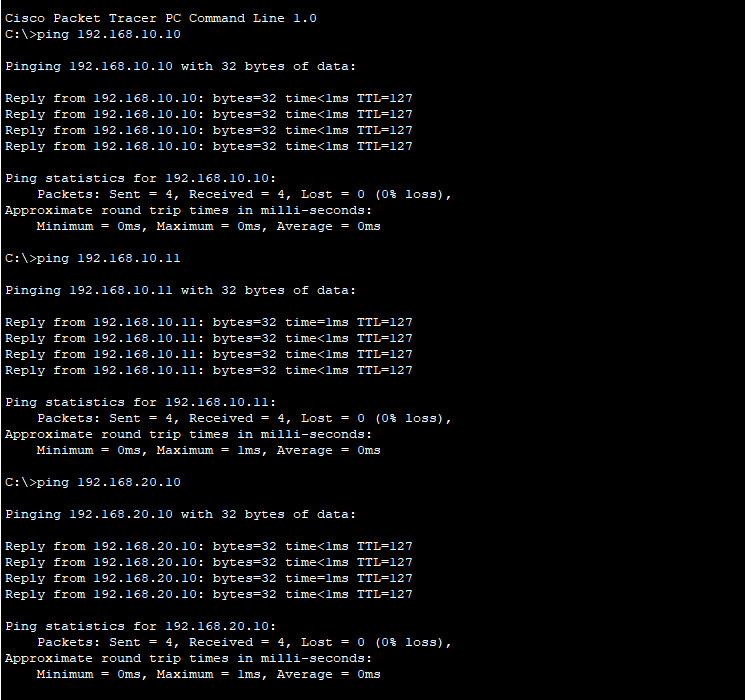

• HR → Admin: Allowed


All departments communicated successfully.No packet loss detected

After Security Enforcement

• Sales ↔ Admin: Allowed

• Admin ↔ Sales: Allowed

• HR → Admin: BLOCKED ❌

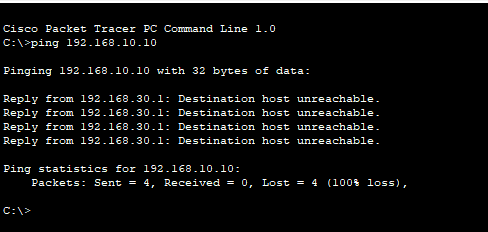

After implementing the ACL, requests from the HR department to the Admin department failed with the message “Destination host unreachable.” This confirms that the router successfully blocked the traffic according to the security rules. The response originated from the HR gateway, proving that the Access Control List was enforced correctly. The network design, configuration, and security implementation all functioned as intended.

Security Outcome

The ACL successfully prevented unauthorized access while preserving business communication. This demonstrates real-world network defense techniques used in enterprise environments.

Skills Demonstrated

• Network segmentation
• Subnetting & IP addressing
• Router configuration (Cisco CLI)
• Access Control Lists
• Security validation testing
• Defensive network architecture

Real-World Relevance

This project models how organizations isolate sensitive systems (finance, HR, management) to prevent attackers from moving across the network after an initial compromise.

It demonstrates practical defensive engineering skills expected from Network Security Engineers and SOC Analysts.
